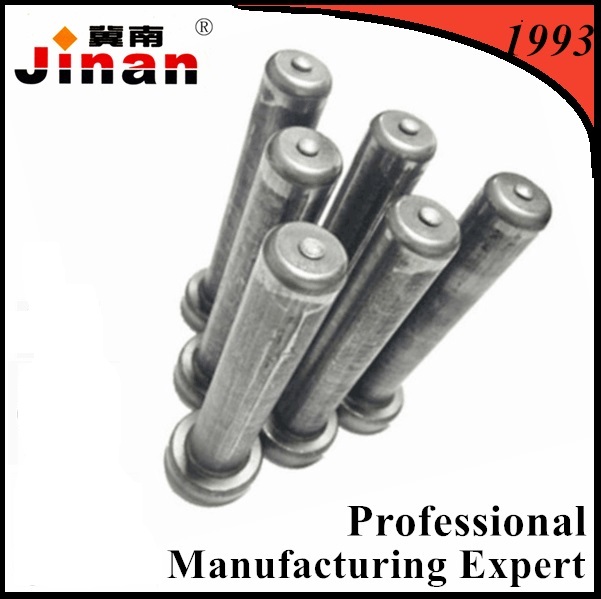

Shear Stud Connector -European CE Certificate and ISO9001-2008 certification
Standard : ISO13918 BS5400 AWSD1.1 JIS B1198
Size: M10-M25 length:40mm-250mm
Material: SWRCH18A SWRCH15A
Tensile strength:>=450Mpa,>=495Mpa
Yield strength:>=350Mpa,>=385Mpa
Elongation:>=15%,>=20%
Packing: carton on wooden pallet
Professional manufacturer for shear stud connector for nearly 25 years.
ISO 13918 unit: mm
D | Normal | M10 | M13 | M16 | M19 | M22 | M25 |
min | 9.6 | 12.6 | 15.6 | 18.6 | 21.6 | 24.6 | |
max | 10 | 13 | 16 | 19 | 22 | 25 | |
Dk | min | 18.7 | 24.7 | 31.7 | 31.7 | 34.7 | 40.7 |
max | 19.3 | 25.3 | 32.3 | 32.3 | 35.3 | 41.3 | |
k | min | 6.5 | 7.5 | 7.5 | 9.5 | 9.5 | 11.5 |
max | 8 | 9 | 9 | 11 | 11 | 13 | |
WA | 4 | 5 | 5 | 6 | 6 | 6 | |
L1 | 40-100 | 38-100 | 55-200 | 60-205 | 75-250 | 80-206 | |
Chemical componsition of material
Material | C % | Si % | Mn % | P % | S % |
Carbon Steel | 0.13-0.18 | ≤0.10 | 0.3-0.6 | ≤0.035 | ≤0.030 |
Mechanical Property
| Standard | Dia. (mm) | Material | Tensile strength MPa | Yield stength MPa | Elongation rate % |
ISO13918 AWS D1.1 JIS B 1198 BS5400 | M10~M25 1/2''-1" | SWRCH18A SWRCH15A ML15AL | 450~550 | ≥350 | ≥15% |
Packaging & Shipping
1.Carton Box In Pallet OR 2.Metal Bucket In Pallet
