JIS B 1198

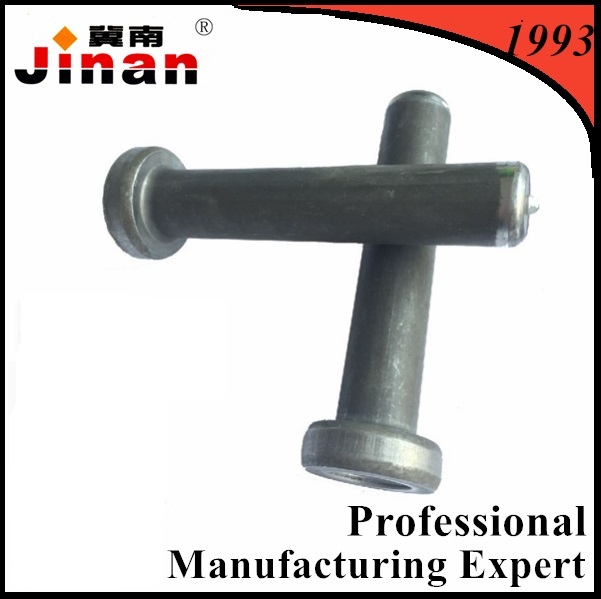

Shear Stud Connector -European CE Certificate and ISO9001-2008 certification

Standard: ISO13918   BS5400   AWSD1.1  JIS B1198

Size:M10-M25 length:40mm-250mm

Material: SWRCH18A  SWRCH15A

Tensile strength:>=450Mpa,>=495Mpa

Yield strength:>=350Mpa,>=385Mpa

Elongation:>=15%,>=20%

Packing: carton on wooden pallet

Professional manufacturer for shear stud connector for nearly 25 years.

ISO 13918                 unit: mm

D

Normal

M10

M13

M16

M19

M22

M25

min

9.6

12.6

15.6

18.6

21.6

24.6

max

10

13

16

19

22

25

Dk

min

    18.7

24.7

31.7

31.7

34.7

40.7

max

19.3

25.3

32.3

32.3

35.3

41.3

k

min

6.5

7.5

7.5

9.5

9.5

11.5

max

8

9

9

11

11

13

WA

4

5

5

6

6

6

L1

40-100

38-100

55-200

60-205

75-250

80-206

Chemical componsition of material

Material

    C %

    Si %

    Mn %

    P %

    S %

Carbon Steel

 0.13-0.18

   ≤0.10

   0.3-0.6

   ≤0.035

   ≤0.030

 Mechanical Property

Standard Dia. (mm)MaterialTensile strength
MPa
Yield stength
MPa
Elongation rate
%

ISO13918

AWS D1.1

JIS B 1198

BS5400

M10~M25

1/2''-1"

SWRCH18A

SWRCH15A

ML15AL

450~550≥350≥15%
